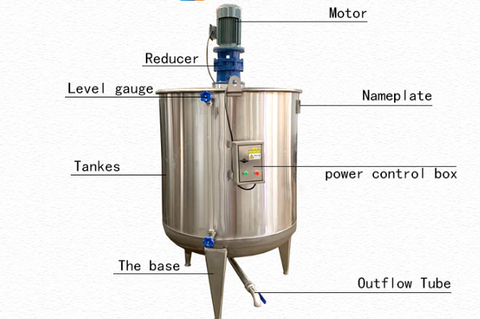

Stainless Steel Oral Liquid Preparation Mixing Tank
$1,000.00
| Volume | Barrel diameter(mm) | Barrel height(mm) | Speed(r/min) | Discharge port diameter(DN) | discharge port height(mm) | Heating power | Motor power(kw) |
| 100 | 550 | 663 | 40 | 25 | 400 | 6 | 0.75 |
| 200 | 650 | 798 | 40 | 25 | 400 | 6 | 0.75 |
| 300 | 750 | 823 | 40 | 32 | 400 | 9 | 0.75 |
| 500 | 900 | 1000 | 40 | 40 | 400 | 12 | 1.1 |
| 800 | 1000 | 1275 | 40 | 40 | 400 | 12 | 1.1 |
| 1000 | 1100 | 1300 | 40 | 40 | 400 | 18 | 1.5 |
| 1500 | 1300 | 1350 | 40 | 40 | 400 | 18 | 1.5 |
| 2000 | 1500 | 1400 | 40 | 50 | 400 | 24 | 2.2 |
| 3000 | 1600 | 1645 | 40 | 50 | 400 | 36 | 3 |
| 4000 | 1800 | 1695 | 40 | 50 | 400 | 36 | 4 |
| 5000 | 1900 | 2025 | 40 | 65 | 400 | 54 | 5.5 |
